Engine Heater

Parameters of Engine Heater

Warmda engine heater can be customized to run on either 110 or 230 volts. It also comes in a range of different heat output options depending on the desired application.

Additional information

Weight 7.6 kg
Dimensions 310 × 155 × 115 cm
Model

Titan-P3

Working Voltage

110V/230V

Rated Power

500W/1000W/1500W/2000W/2500W/3000W

Dimensions(mm)

198 x 82

Dimensions(in)

7.8 X 3.2

Cable length(m)/(ft)

1/3.3

Weight

0.99KGS/2.2Ib

Current Intensity

≤ 13 Amps

Details about Engine Heater

How the Warmda engine heater works.

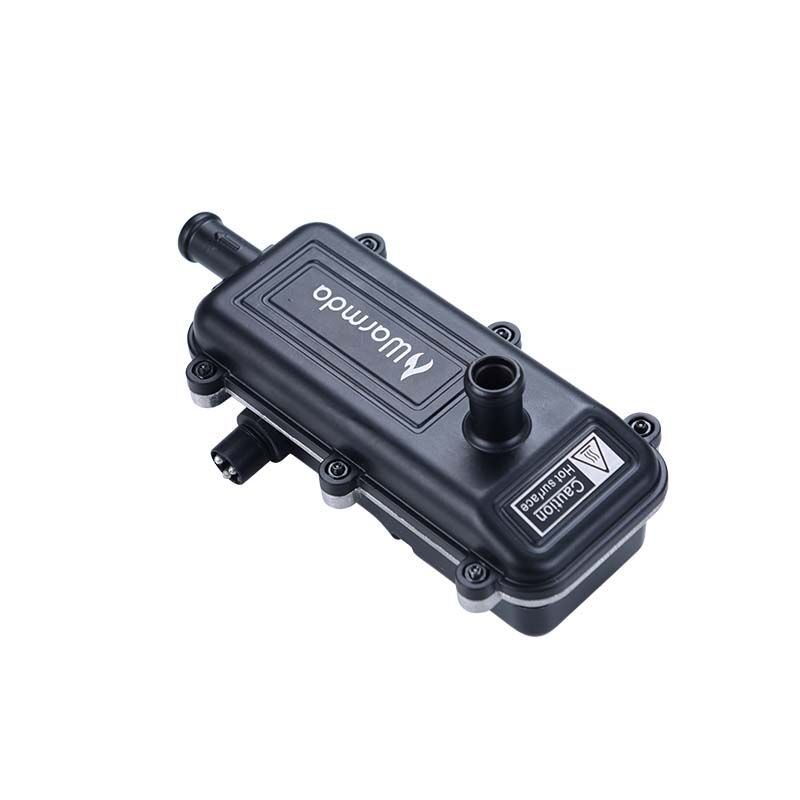

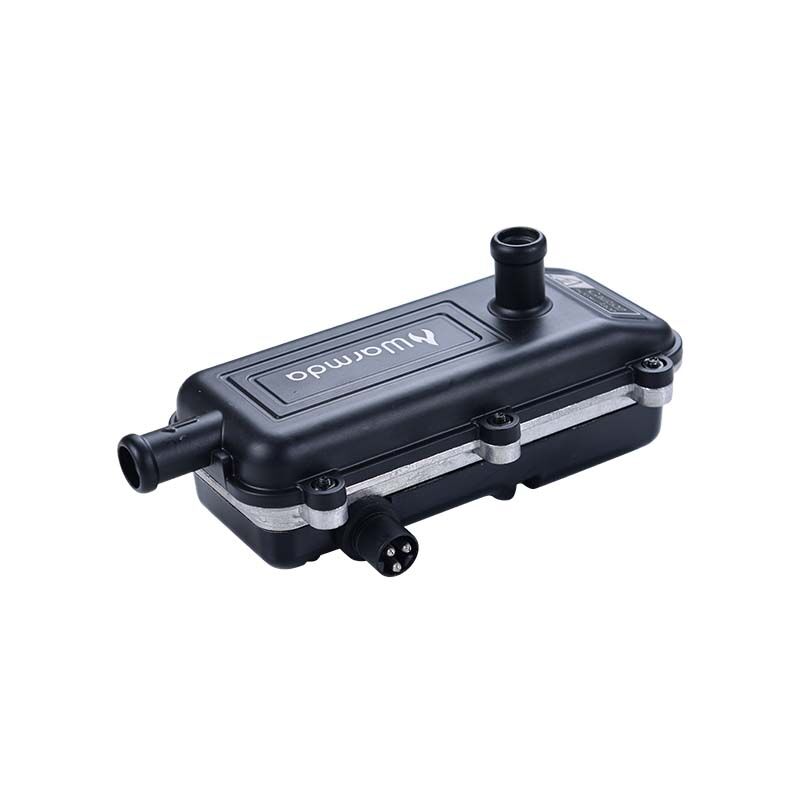

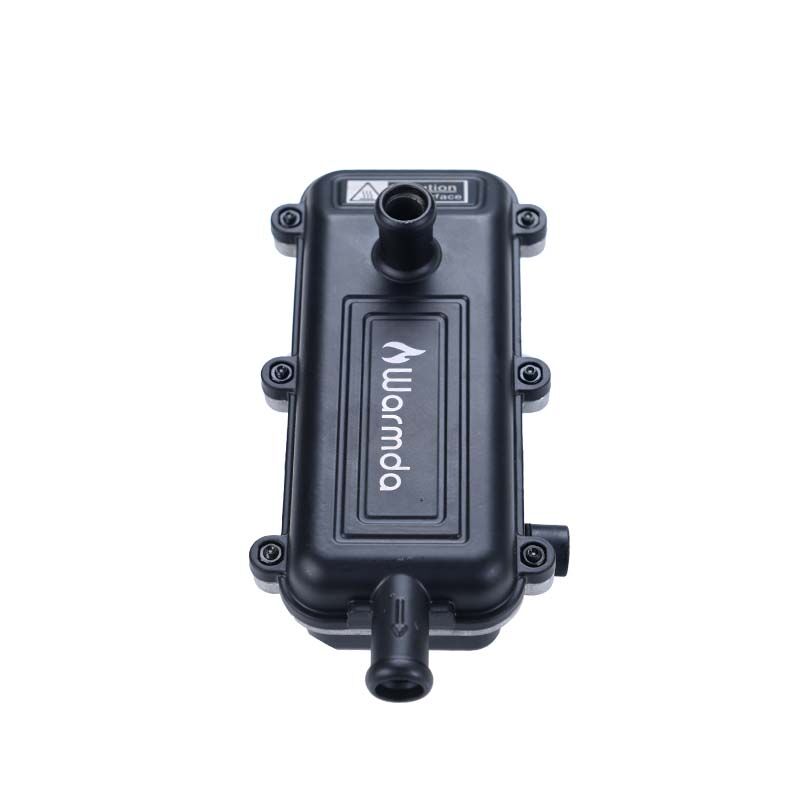

The Warmda Titan-P3 is an engine heater with a built-in circulating pump and dual thermostat protection.



Engine Heater Titan-P3 Dimensions



Warmda Engine Heater Titan-P3 Dimensions



This heater can be customized to run on either 110 or 230 volts.



It also comes in a range of different heat output options depending on the desired application.



Warmda Engine Heater Connection Cable

Warmda Engine Heater Connection Cable



The Warmda Engine Heater Titan-P3’s heating element is die-cast inside an aluminum shell.

This unique design not only allows the antifreeze to be quickly heated, but also extends the life of the heating element.



Warmda Engine Heater Heating Element



Warmda Engine Heater Heating Element



Quality thermostats for the safety of your customers.



The Engine heater Titan-P3 contains two mechanical bi-metal thermostats which are arranged on both sides of the electric heating element.



The thermostat has a ceramic shell that protects the thermostat from deforming at high temperatures.



Engine Heater Thermostat



Engine Heater Thermostat



When the thermostat detects that the temperature of the heater has reached the set temperature, it will cut off the power.



When the thermostat detects that the heater is below the set temperature, it will turn on the power supply of the electric heating element.



The Engine heater Titan-P3 uses pure silver for the thermostat contact which capable of safely handling 16 amperes of current.



Warmda LLC offers you customized services for engine heaters.



A 90-degree angle between the water outlet and the water inlet helps facilitate heater installation inside tight engine compartments.



Warmda is very adaptable to unique requirements or situations.



If you require any special adaptations such as custom cable length or protective cable shielding we can accommodate your needs.



At Warmda we also take industry certification standards seriously.



The Warmda engine heater Titan-P3 has TUV, FCC and RoHS certifications.



If you are interested in the advantages that the warmda engine heater Titan-P3 can provide for you and your customers, please contact us for more information.
